Block for Adjust Bolt

    SAK-B

    Safety Precautions

    RoHS Compliant

    SAK-BBlock for Adjust Bolt

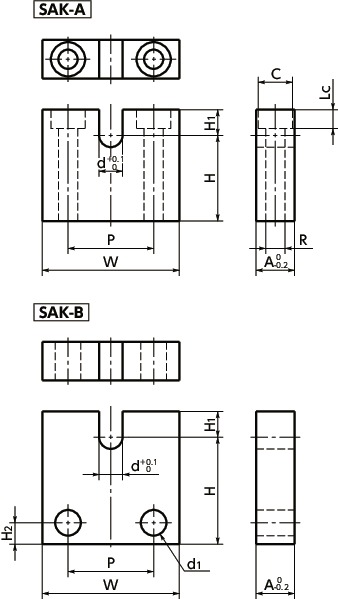

    Dimension Drawing

    SAK-BBlock for Adjust Bolt寸法図

    Specs/CAD

    Unit : mm

    Part Number H A H1 H2 P W d d1 Mass
    (g)    		 Price
    (USD)    		 CAD
    Download    		 Add to Cart
    SAK-6-B 25 9 6 5 20 32 5.5 6 62 29.64 CAD Cart
    SAK-8-B 25 12 8 6 26 38 7.5 7 102 36.28 CAD Cart
    SAK-10-B 35 16 10 9 32 50 9.5 9.5 186 41.47 CAD Cart
    SAK-12-B 40 19 11 12 40 65 11.5 11.5 293 50.17 CAD Cart

    Part Number
    Amount
    Price（＄）

    Check other products Cart

    　　　　　　

    Material/Finish

    SAK-B
    Main body SS400
    Nickel Plating

    Characteristics

    • Block for fixing Adjust bolt SAT.

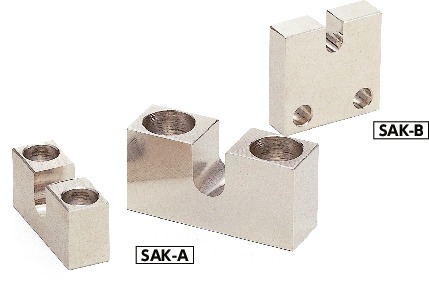

    • You can choose it from the following two types according to your application.
      SAK-A---- Mounting from above
      SAK-B---- Mounting from front
    • Please combine with the adjust bolt SAT.SAT

    Usage Example

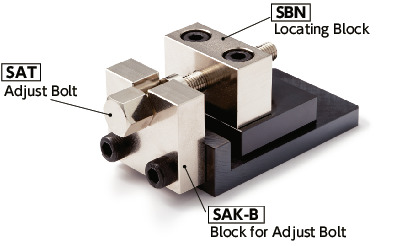

    Usable as a simple positioning mechanism in combination with Adjust Bolts.

    SAK-BBlock for Adjust Bolt


    Product List

    Click here to see

    SAK-A

    Part Name

    Block for Adjust Bolt

    Part Number

    SAK-A

    Feature

    Used in combination with SAT

    SBN

    Part Name

    Locating Block

    Part Number

    SBN

    Feature

    For fixing SSB
