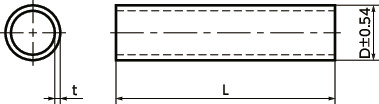

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | D | L | t | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|
| DAP-30-300 | 30 | 300 | 2 | 150 | 9.08 | CAD | Cart |
| DAP-30-350 | 30 | 350 | 2 | 175 | 9.41 | CAD | Cart |
| DAP-30-400 | 30 | 400 | 2 | 200 | 10.21 | CAD | Cart |
| DAP-30-450 | 30 | 450 | 2 | 225 | 11.01 | CAD | Cart |
| DAP-30-500 | 30 | 500 | 2 | 250 | 11.58 | CAD | Cart |
| DAP-40-300 | 40 | 300 | 3 | 300 | 12.97 | CAD | Cart |
| DAP-40-350 | 40 | 350 | 3 | 350 | 14.10 | CAD | Cart |
| DAP-40-400 | 40 | 400 | 3 | 400 | 15.49 | CAD | Cart |
| DAP-40-450 | 40 | 450 | 3 | 450 | 16.75 | CAD | Cart |
| DAP-40-500 | 40 | 500 | 3 | 500 | 18.12 | CAD | Cart |
Material/Finish
| DAP | |
|---|---|
| Main body | A6063 Alumite Treatment |
Characteristics

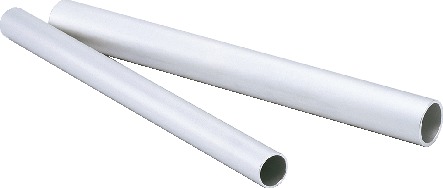

- Aluminum Alloy Round Pipe.
- Wiring for the display can be let through the pipe. This prevents the wiring from getting caught during operations.
- We also produce products of special specifications, e.g. length and surface treatment. Please feel free to contact us.

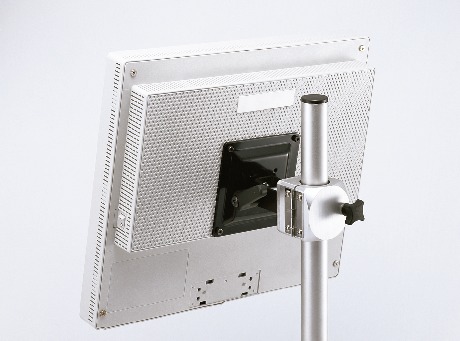

Usage Example
