KNF-36-M10

Name: KNF-36-M10
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Knurled Knob

Safety Precautions

RoHS Compliant

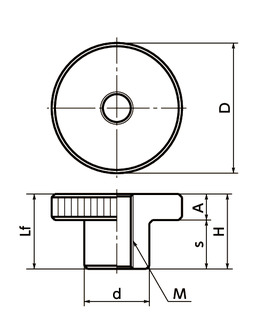

Dimension Drawing

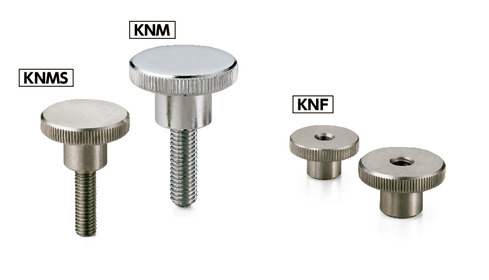

KNM has a round-shaped thread tip to be distinguished from KNMS.

Unit : mm

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lf	H	s	A	d	Mass (g)	Price (USD)	CAD Download	Add to Cart
KNF-36-M10	36	M10	1.5	23	23	15	8	20	86	8.54	CAD	Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Material/Finish

	KNF
Main body	SUM22L Buffing / Chrome Plating

Characteristics

A rich variety of thread sizes from M3 to M10 are available.
