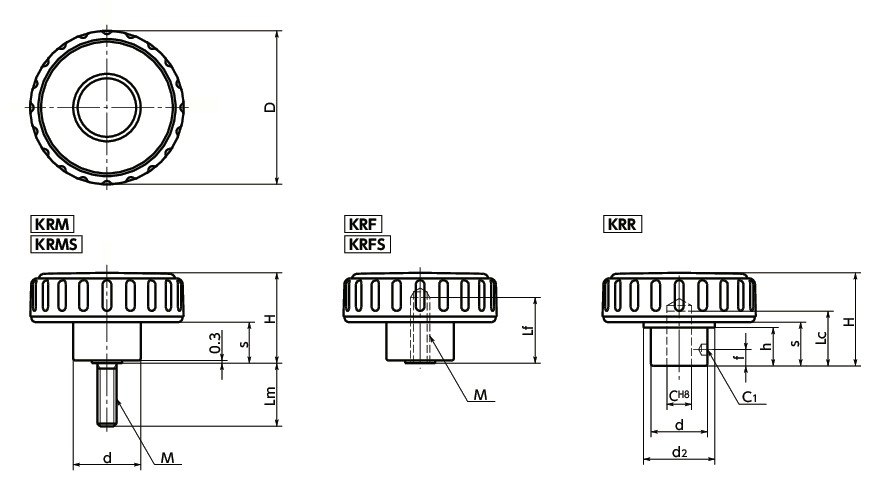

Dimension Drawing
Unit : mm
| Part Number | D | C | Lc | H | C | d2 | d | f | h | s | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KRR-63-R12 | 63 | 12 | 23 | 40 | 12 | 26 | 21 | 10 | 17 | 20 | 91 | 7.46 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| KRR | |
|---|---|
| knob | Nylon 6 (Matte Black) |
| Hub | Steel Ferrosoferric Oxide Film (Black) |
Characteristics

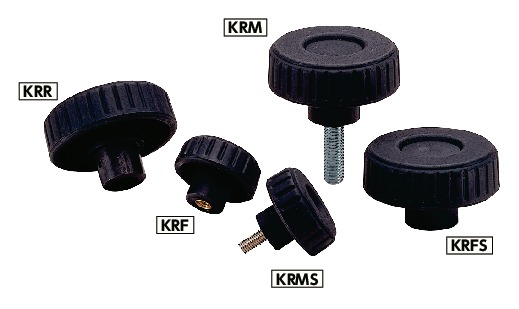

- Three types: Male Screw KRMKRMS / Female Screw KRFKRFS / Reamer Bore KRR.
- The reamer hole KRR hub has a guide hole for the fixing pin.
- A rich variety of thread sizes from M4 to M10 are available.
- Types and thread part materials can be selected by a product code.
| Product Code | Type | Thread Part Material |
|---|---|---|
| KRM | Male Screw | Made of Steel |
| KRMS | Male Screw | Made of Stainless Steel |
| KRF | Female Screw | Made of Steel |
| KRFS | Female Screw | Made of Stainless Steel |
| KRR | Reamer Bore | Made of Steel |
