Hints for Correctly Using NBK Products
The video is an example using SCS-F(SCS-F). You can perform the same operation using this product.
Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D | B | Mass (g) |
Allowable load(N) | Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| SCS-M3-5-R | M3 | 0.5 | 5.2 | 1.5 | 1.5 | 0.3 | 2700 | 3.38 | CAD | Cart |
| SCS-M3-10-R | M3 | 0.5 | 10.2 | 1.5 | 1.5 | 0.6 | 2700 | 3.38 | CAD | Cart |
| SCS-M4-6-R | M4 | 0.7 | 6.5 | 2.5 | 2 | 0.4 | 3500 | 1.74 | CAD | Cart |
| SCS-M4-10-R | M4 | 0.7 | 10.5 | 2.5 | 2 | 0.7 | 3500 | 1.74 | CAD | Cart |
| SCS-M4-16-R | M4 | 0.7 | 16.5 | 2.5 | 2 | 1 | 3500 | 1.74 | CAD | Cart |
| SCS-M5-8-R | M5 | 0.8 | 8.6 | 3 | 2.5 | 0.8 | 5000 | 1.74 | CAD | Cart |
| SCS-M5-12-R | M5 | 0.8 | 12.6 | 3 | 2.5 | 1.3 | 5000 | 1.74 | CAD | Cart |
| SCS-M5-20-R | M5 | 0.8 | 20.6 | 3 | 2.5 | 2.3 | 5000 | 1.74 | CAD | Cart |
| SCS-M6-10-R | M6 | 1 | 10.8 | 4 | 3 | 1.5 | 9000 | 1.74 | CAD | Cart |
| SCS-M6-16-R | M6 | 1 | 16.8 | 4 | 3 | 2.5 | 9000 | 1.74 | CAD | Cart |
| SCS-M6-20-R | M6 | 1 | 20.8 | 4 | 3 | 3.4 | 9000 | 2.01 | CAD | Cart |
| SCS-M6-25-R | M6 | 1 | 25.8 | 4 | 3 | 4 | 9000 | 2.01 | CAD | Cart |
| SCS-M8-10-R | M8 | 1.25 | 11.2 | 5.5 | 4 | 2.5 | 15000 | 2.28 | CAD | Cart |
| SCS-M8-12-R | M8 | 1.25 | 13.2 | 5.5 | 4 | 3.2 | 15000 | 2.02 | CAD | Cart |
| SCS-M8-20-R | M8 | 1.25 | 21.2 | 5.5 | 4 | 5.7 | 15000 | 2.17 | CAD | Cart |
| SCS-M8-25-R | M8 | 1.25 | 26.2 | 5.5 | 4 | 7.7 | 15000 | 2.17 | CAD | Cart |
| SCS-M8-30-R | M8 | 1.25 | 31.2 | 5.5 | 4 | 9 | 15000 | 2.29 | CAD | Cart |
| SCS-M10-12-R | M10 | 1.5 | 13.7 | 7 | 5 | 5 | 24000 | 2.63 | CAD | Cart |
| SCS-M10-16-R | M10 | 1.5 | 17.7 | 7 | 5 | 7 | 24000 | 2.39 | CAD | Cart |
| SCS-M10-20-R | M10 | 1.5 | 21.7 | 7 | 5 | 9.5 | 24000 | 2.39 | CAD | Cart |
| SCS-M10-25-R | M10 | 1.5 | 26.7 | 7 | 5 | 11 | 24000 | 2.39 | CAD | Cart |
| SCS-M10-35-R | M10 | 1.5 | 36.7 | 7 | 5 | 16 | 24000 | 2.52 | CAD | Cart |
| SCS-M12-16-R | M12 | 1.75 | 18 | 8.5 | 6 | 10 | 30000 | 3.61 | CAD | Cart |
| SCS-M12-20-R | M12 | 1.75 | 22 | 8.5 | 6 | 12.5 | 30000 | 3.09 | CAD | Cart |
| SCS-M12-30-R | M12 | 1.75 | 32 | 8.5 | 6 | 20 | 30000 | 3.34 | CAD | Cart |
| SCS-M12-40-R | M12 | 1.75 | 42 | 8.5 | 6 | 28 | 30000 | 3.48 | CAD | Cart |
| SCS-M16-20-R | M16 | 2 | 23.3 | 12 | 8 | 22 | 73000 | 4.93 | CAD | Cart |
| SCS-M16-25-R | M16 | 2 | 28.3 | 12 | 8 | 28 | 73000 | 4.93 | CAD | Cart |
| SCS-M16-35-R | M16 | 2 | 38.3 | 12 | 8 | 41 | 73000 | 4.93 | CAD | Cart |
| SCS-M16-50-R | M16 | 2 | 53.3 | 12 | 8 | 48 | 73000 | 4.93 | CAD | Cart |
＊： SCS-M8-10-RSCS-M10-12-RSCS-M12-16-RSCS-M16-20-R has a shallow Hex Socket hole depth.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish

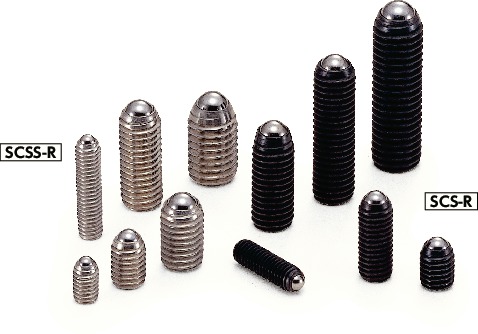

| SCS-R Made of Steel |
|
|---|---|
| Thread Part |
SCM435 Ferrosoferric Oxide Film (Black) |
| Ball | SUJ2 (hardness: 55-60 HRC) |
Characteristics
- Point contact by full ball securely fixes a work.
- For tool holder set screw, pressure piece and stopper.
- We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
