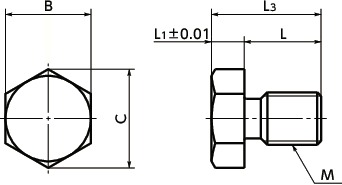

Dimension Drawing
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L1 | L3 | L | B | C | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPM-M4 | M4 | 0.7 | 2.8 | 8.8 | 6 | 7 | 8.1 | 1.3 | 5.48 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SPM | |
|---|---|
| Main body |
S45C end face quenching (hardness: 35 HRC or above) - Polishing Trivalent Chromate Treatment |
Characteristics
- Use this as a recipient of the stopper bolt SSB-A (SSB-A) SSB-B (SSB-BSSBS-B) and stopper screw SAN-B (SAN-BSANS-B).
- The hexagon head end face has already been quenched. It is highly abrasion-resistant.
Usage Example
In combination with a stopper screw SAN-B.
