Characteristics

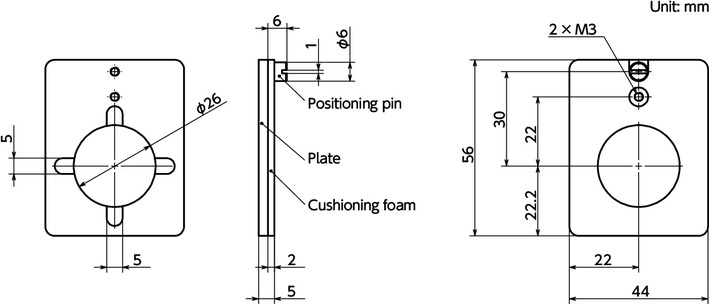

• EPU-210 (EPU-210) EPU-220 (EPU-220) dedicated mounting plate.

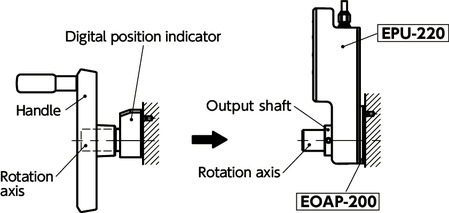

• If replacing the digital position indicator and handle attached to a machine with EPU-210 or EPU-220, use the positioning pin hole for the digital position indicator of the machine as-is to mount EPU-210 or EPU-220.

Material/Finish

Mounting

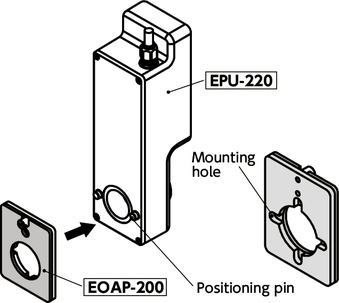

① Mount by aligning the EPU-210EPU-220 positioning pins and the EOAP-200 mounting holes.

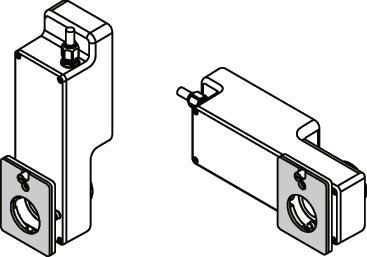

Can be mounted in each 90° orientation.
Mount in a position such that EPU-210EPU-220 does not interfere with machinery.

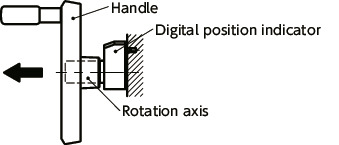

② Remove the digital position indicator and handle from the rotation axis.

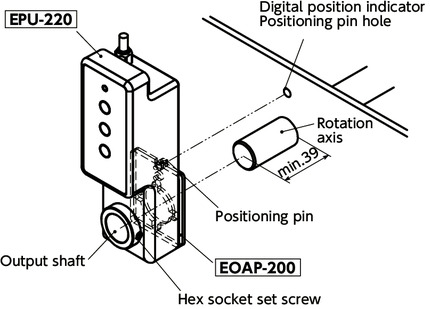

③ With EOAP-200 mounted to EPU-210EPU-220, put the rotation axis through the output shaft and secure with the hex socket set screws supplied with EPU-210EPU-220. (Recommended tightening torque: 2.8 N･m)

Precautions for Use

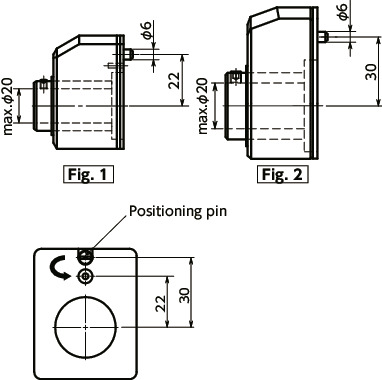

EOAP-200 is used when replacing digital position indicators with sizes as per Fig. 1 or Fig. 2. When shipped, the position of the EOAP-200 positioning pin is matched for sizes of Fig. 2. When replacing digital position indicators with sizes as per Fig. 1, rotate the positioning pin anti-clockwise with a flathead screwdriver and remove it, then change its position. (Recommended tightening torque: 0.3 N･m)
