Service description
- Screws will be treated with relief cut and given a captive function.
Target product
- e-nedzi.com products are the target.
- Available / Add'l charge is displayed at the end of each product page for the target product.
- crews with captive processing are standardized.

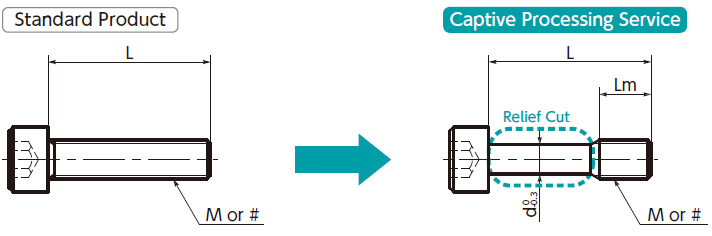

L dimension for this service to be applied, and finished dimension
Meter Screws
| Nominal
Diameter of
Thread (M) |
L dimension for this service to be applied | d | Lm | |
|---|---|---|---|---|
| min. | max. | |||
| M3 | 8 | 16 | 2.2 | 4 |
| M4 | 10 | 20 | 3 | 5 |
| M5 | 12 | 25 | 3.9 | 6 |
| M6 | 12 | 30 | 4.5 | 8 |
| M8 | 16 | 40 | 6.3 | 10 |
| M10 | 20 | 50 | 8 | 12 |
| M12 | 20 | 50 | 9.7 | 14 |
Inch Screws
| Nominal
Diameter of
Thread (#) |
L dimension for this service to be applied (inch) | d | Lm | |
|---|---|---|---|---|
| min. | max. | |||
| #4 - 40 | 5／16 | 5／8 | 1.9 | 4 |
| #5 - 40 | 5／16 | 5／8 | 2.2 | 4 |
| #6 - 32 | 3／8 | 3／4 | 2.4 | 5 |
| #8 - 32 | 3／8 | 3／4 | 3 | 5 |
| #10 - 24 | 3／8 | 1 | 3.4 | 6 |
| #10 - 32 | 3／8 | 1 | 3.7 | 6 |
| 1／4 - 20 | 5／8 | 1 - 1／4 | 4.6 | 9 |
| 1／4 - 28 | 5／8 | 1 - 1／4 | 5 | 9 |
| 5／16 - 18 | 5／8 | 1 - 1／2 | 6 | 10 |
| 3／8 - 16 | 3／4 | 2 | 7.4 | 12 |
Part number specification
Add -DB to the end of the product part number.
Price・Delivery
- Please feel free to contact us.
