Coupling Stainless Steel Screw Alteration Service
Please contact Customer Service for Stainless Steel Set Screw alteration service orders/purchases via email at info.us@nbk1560.com or Fax at 484-685-7500
Service Contents

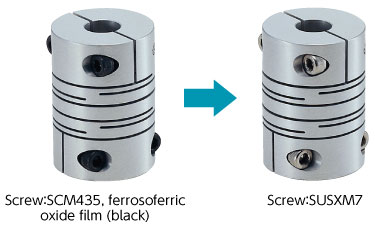

Hex socket set screws provided with set screw type couplings and hex socket head cap screws provided with clamping type couplings can be altered to stainless steel.
About the Rated Torque of Disc type Coupling
The rated torque values associated on the table for XHW-C
XHW-C-L
XHS-C
XBW-C and,
XBS-C will decrease if the set screws are altered to stainless steel.
unit：N･m
| Part Number | Rated Torque | ||
|---|---|---|---|
| XHW-15C | XHS-15C | 0.42 | |
| XHW-19C | XHW-19C-L | XHS-19C | 0.85 |
| XHW-25C | XHW-25C-L | XHS-25C | 1.8 |
| XHW-27C | XHW-27C-L | XHS-27C | 2.0 |
| XHW-34C | XHW-34C-L | XHS-34C | 3.6 |
| XHW-39C | XHW-39C-L | XHS-39C | 7.2 |
| XHW-44C | XHS-44C | 8.4 | |
| XHW-56C | XHS-56C | 24 | |
| XHW-64C | XHS-64C | 28 | |
| XHW-79C | XHS-79C | 60 | |
| XHW-98C | XHS-98C | 120 | |
unit：N･m
| Part Number | Rated Torque | |
|---|---|---|
| XBW-15C2 | XBS-15C2 | 0.42 |
| XBW-19C2 | XBS-19C2 | 0.6 |
| XBW-25C2 | XBS-25C2 | 1.1 |
| XBW-27C2 | XBS-27C2 | 1.3 |
| XBW-34C3 | XBS-34C3 | 2.5 |
| XBW-39C2 | XBS-39C2 | 4.8 |
| XBW-44C2 | XBS-44C2 | 5.6 |
| XBW-56C3 | XBS-56C3 | 14 |
| XBW-68C5 | XBS-68C5 | 32 |
| XBW-82C5 | XBS-82C5 | 62 |
| XBW-94C7 | XBS-94C7 | 72 |
| XBW-104C8 | XBS-104C8 | 85 |
Target Products
- Coupling category products are targeted. Product list ＞
- Target Series List
| Type | Product Code | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| High-Gain Rubber | XGT2 | XGL2 | XGS2 | XGT | XGT-C | XGT-CS | XGS | XGS-C | XGS-CS | XGL-C |
| Disk | XHW-C | XHW-C-L | XHW-AC |
XHS-C |
XBW-C |
XBS-C |
MDW |
MDS |
MHW |
MHS |
| Slit | MSX | MSX-C | MST | MST-C | MST-K | MWS | MWS-C | |||
| Jaw | MJC-BL | MJC-WH | MJC-RD | MJC-GR | MJC-EBL | MJC-EWH | MJC-ERD | MJC-EGR | ||
| MJC-CS-BL | MJC-CS-WH | MJC-CS-RD | MJC-CS-GR | MJC-CS-EBL | MJC-CS-EWH | MJC-CS-ERD | MJC-CS-EGR | |||
| MJC-K-BL | MJC-K-WH | MJC-K-RD | MJC-K-GR | MJC-K-EBL | MJC-K-EWH | MJC-K-ERD | MJC-K-EGR | |||
| MJC-CSK-BL | MJC-CSK-WH | MJC-CSK-RD | MJC-CSK-GR | MJC-CSK-EBL | MJC-CSK-EWH | MJC-CSK-ERD | MJC-CSK-EGR | |||
| Cross joint | XUT-C | |||||||||
| Oldham | MOR | MOR-C | MOR-K | MOR-CK | MOM | MOM-C | MOM-K | MOM-CK | ||
| MOL | MOL-C | MOS | MOS-C | |||||||
| Bellows | MFB | MFB-C | ||||||||
| Rigid | XRP | MRG | MRG-C | MRG-W | MLR-C | MLR-V | ||||
| Serration | MSF | |||||||||

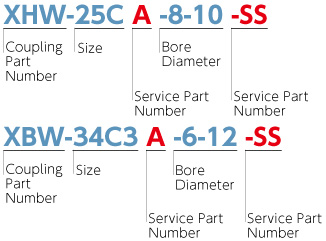

Part number specification
Service part numbers for disk types XHW-C XHW-C-L XHS-C XBW-C XBS-C differ from those of other series.
For disk types XHW-C XHW-C-L XHS-C XBW-C XBS-C
Add -SS to the end of the coupling part number.Further, add A in front of the Bore Diameter.
For series other than the above
Add -SS to the end of the coupling part number.
Price・Delivery
- Please feel free to contact us.
