SNSS-3/8-16

Name: SNSS-3/8-16
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Hex Socket Head Cap Screws - Inch Thread

Safety Precautions

RoHS Compliant

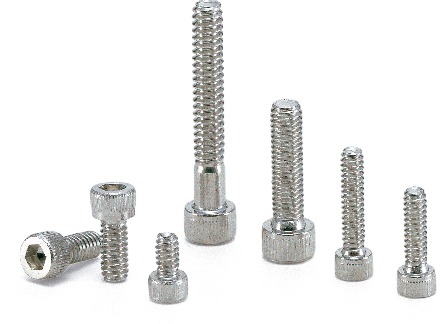

SNSS(INCH)Hex Socket Head Cap Screws - Inch Thread

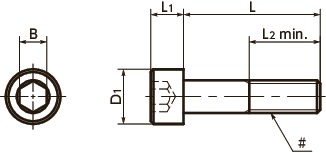

Dimension Drawing

Specs/CAD

Select

# Nominal of Thread: All; 3/8-16UNC

L: All; 1/2"; 5/8"; 3/4"; 7/8"; 1"; 1-1/4"; 1-1/2"; 1-3/4"; 2"

Unit : inch

Part Number	# Nominal of Thread	L	D₁	L₁	L₂	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNSS-3/8-16-1/2	3/8-16UNC	1/2	0.562	0.375	Full Thread	5/16	10	16	64.43	CAD	Cart
SNSS-3/8-16-5/8	3/8-16UNC	5/8	0.562	0.375	Full Thread	5/16	10	17	60.82	CAD	Cart
SNSS-3/8-16-3/4	3/8-16UNC	3/4	0.562	0.375	Full Thread	5/16	10	19	65.74	CAD	Cart
SNSS-3/8-16-7/8	3/8-16UNC	7/8	0.562	0.375	Full Thread	5/16	10	20	68.41	CAD	Cart
SNSS-3/8-16-1	3/8-16UNC	1	0.562	0.375	Full Thread	5/16	10	22	73.88	CAD	Cart
SNSS-3/8-16-1 1/4	3/8-16UNC	1-1/4	0.562	0.375	Full Thread	5/16	10	24	80.27	CAD	Cart
SNSS-3/8-16-1 1/2	3/8-16UNC	1-1/2	0.562	0.375	1.25	5/16	10	27	89.17	CAD	Cart
SNSS-3/8-16-1 3/4	3/8-16UNC	1-3/4	0.562	0.375	1.25	5/16	10	30	105.07	CAD	Cart
SNSS-3/8-16-2	3/8-16UNC	2	0.562	0.375	1.25	5/16	10	33	114.59	CAD	Cart

●All dimensions are in inches.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SNSS(INCH)
Main Body	Stainless Steel（Grade：A2）
Strength Class	A2-50

Application

Equipment and devices using inch screw specifications

Characteristics

Socket head cap screws with inch thread.
ANSI B18.3 compliance.
Install and remove by using SKH(INCH) Specialty Key.SKH(INCH)
