SNSS-M1

Name: SNSS-M1
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

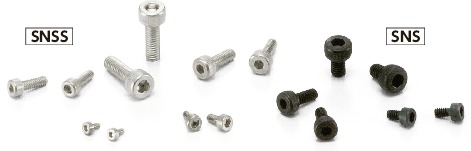

Hex Socket Head Cap Screws for Precision Instruments

Safety Precautions

RoHS Compliant

Miniature

SNSSHex Socket Head Cap Screws for Precision Instruments

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1

L: All; 2; 3; 4; 5

Unit : mm

Part Number	Max. Torque (N・m)	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	Standard
SNSS-M1-2	0.02	M1	0.25	2	2	1	0.9	10	0.025	7.87	CAD	Cart
SNSS-M1-3	0.02	M1	0.25	3	2	1	0.9	10	0.03	7.87	CAD	Cart
SNSS-M1-4	0.02	M1	0.25	4	2	1	0.9	10	0.035	7.87	CAD	Cart
SNSS-M1-5	0.02	M1	0.25	5	2	1	0.9	10	0.039	7.87	CAD	Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SNSS
Body	SUSXM7 （S.S. grade：A2）

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

M1 - M2.5.
Miniature screws for precision instruments.

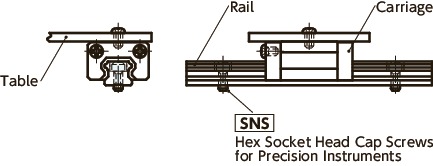

Usage Example

For fixing miniature linear guideway rails and tables.
