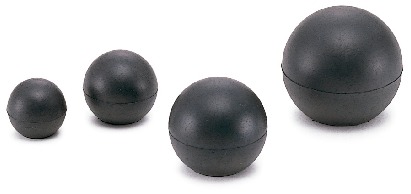

Gum Ball Knob

Name: KGB
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

KGB

Safety Precautions

RoHS Compliant

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M6; M8; M10; M12

Unit : mm

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lf	H	Mass (g)	CAD Download	Cart
KGB-20-M6	20	M6	1	10	18	10	CAD	RFQ
KGB-25-M8	25	M8	1.25	12.5	22.5	15	CAD	RFQ
KGB-32-M10	32	M10	1.5	16	29	25	CAD	RFQ
KGB-40-M12	40	M12	1.75	20	36	40	CAD	RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

	KGB
Ball Part	EPDM (Matte Black)
Thread Part	S45C Trivalent Chromate Treatment

Characteristics

Made of gum with soft touch.
