Dimple Knob

Name: KRM
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

KRM

Safety Precautions

RoHS Compliant

Won the Good Design Award

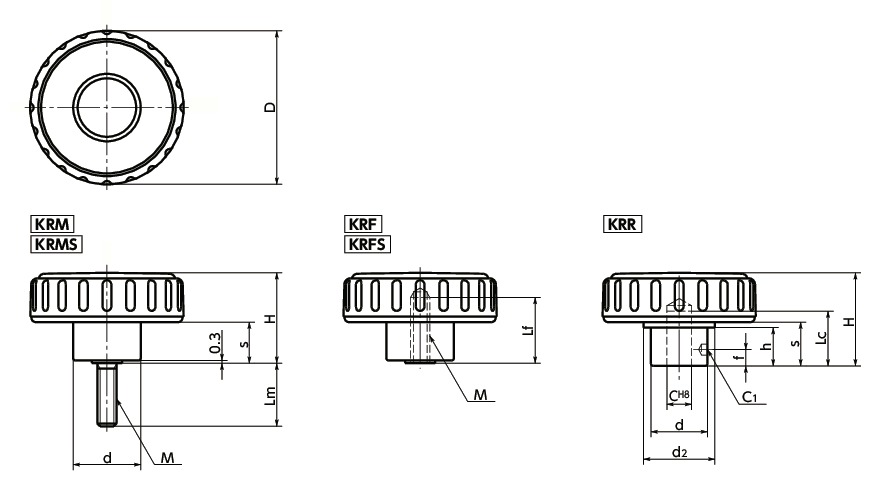

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M4; M5; M6; M8; M10

Lm: All; 6; 10; 16; 20; 40; 25; 30; 50

Unit : mm

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	H	s	d	Mass (g)	CAD Download	Cart
KRM-25-M4-6	25	M4	0.7	6	19	8	13	6	CAD	RFQ
KRM-25-M4-10	25	M4	0.7	10	19	8	13	7	CAD	RFQ
KRM-25-M4-16	25	M4	0.7	16	19	8	13	7	CAD	RFQ
KRM-32-M5-10	32	M5	0.8	10	22	10	15	11	CAD	RFQ
KRM-32-M5-16	32	M5	0.8	16	22	10	15	12	CAD	RFQ
KRM-32-M5-20	32	M5	0.8	20	22	10	15	12	CAD	RFQ
KRM-32-M6-10	32	M6	1	10	22	10	15	12	CAD	RFQ
KRM-32-M6-20	32	M6	1	20	22	10	15	14	CAD	RFQ
KRM-32-M6-40	32	M6	1	40	22	10	15	19	CAD	RFQ
KRM-40-M6-10	40	M6	1	10	25	11	17	16	CAD	RFQ
KRM-40-M6-16	40	M6	1	16	25	11	17	18	CAD	RFQ
KRM-40-M6-20	40	M6	1	20	25	11	17	18	CAD	RFQ
KRM-40-M6-25	40	M6	1	25	25	11	17	19	CAD	RFQ
KRM-40-M8-16	40	M8	1.25	16	25	11	17	23	CAD	RFQ
KRM-40-M8-20	40	M8	1.25	20	25	11	17	25	CAD	RFQ
KRM-50-M8-16	50	M8	1.25	16	30	13.5	20	29	CAD	RFQ
KRM-50-M8-20	50	M8	1.25	20	30	13.5	20	31	CAD	RFQ
KRM-50-M8-25	50	M8	1.25	25	30	13.5	20	33	CAD	RFQ
KRM-50-M8-30	50	M8	1.25	30	30	13.5	20	35	CAD	RFQ
KRM-50-M8-50	50	M8	1.25	50	30	13.5	20	43	CAD	RFQ
KRM-50-M10-20	50	M10	1.5	20	30	13.5	20	40	CAD	RFQ
KRM-50-M10-30	50	M10	1.5	30	30	13.5	20	46	CAD	RFQ
KRM-63-M10-20	63	M10	1.5	20	35	15	23	55	CAD	RFQ
KRM-63-M10-30	63	M10	1.5	30	35	15	23	61	CAD	RFQ
KRM-63-M10-50	63	M10	1.5	50	35	15	23	73	CAD	RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

	KRM
knob	Nylon 6 (Matte Black)
Thread Part	SWCH10R Trivalent Chromate Treatment

Characteristics

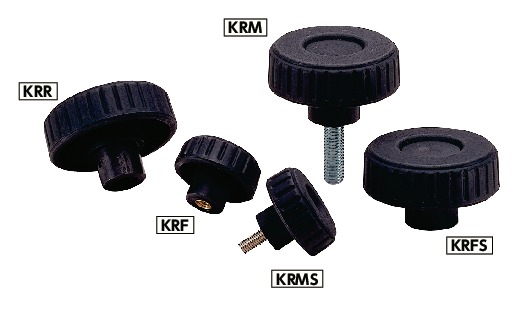

Three types: Male Screw KRMKRMS / Female Screw KRFKRFS / Reamer Bore KRR.
The reamer hole KRR hub has a guide hole for the fixing pin.
A rich variety of thread sizes from M4 to M10 are available.

Types and thread part materials can be selected by a product code.

Product Code	Type	Thread Part Material
KRM	Male Screw	Made of Steel
KRMS	Male Screw	Made of Stainless Steel
KRF	Female Screw	Made of Steel
KRFS	Female Screw	Made of Stainless Steel
KRR	Reamer Bore	Made of Steel
