Metal Super Knob

    KSKA

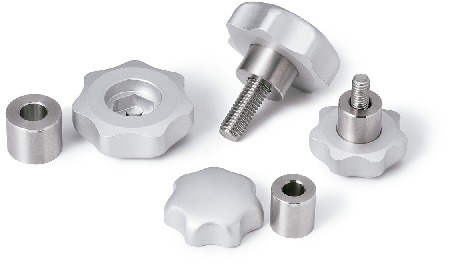

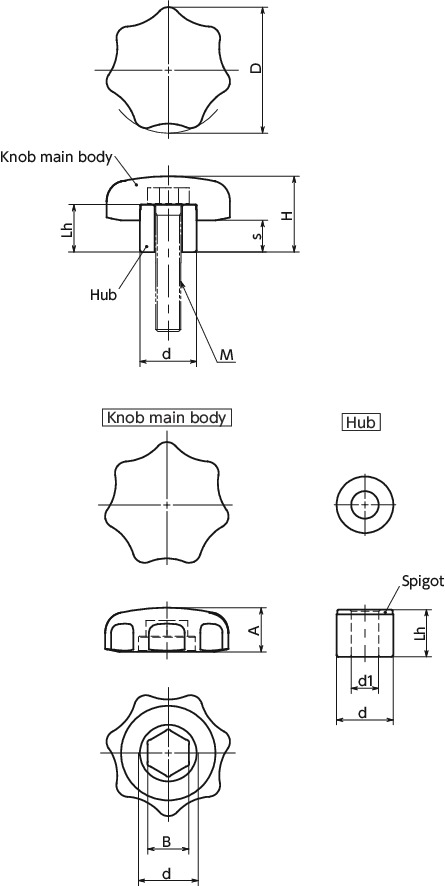

    Dimension Drawing

    KSKAMetal Super Knobs寸法図

    Specs/CAD

    Select

    Size(M)
    All
    M6
    M8

    Unit : mm

    Part Number D M H s d d1 B Lh Mass
    (g)
    CAD
    Download
    Cart
    KSKA-32-M6 32 M6 22 11 14 6.7 10 15 29 CAD RFQ
    KSKA-40-M8 40 M8 24 10 18 8.7 13 15 54 CAD RFQ

    No products fulfill the conditions above.

    We regret to inform you that no products fulfill the conditions you have entered.
    Please change the values you have entered and search once again.

    Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
    Please feel free to contact us via the inquiry form.

    Nabeya Bi-tech Kaisha
    Customer Service

    Please enter questions about customization and other product-related inquiries here.

    Find the inquiry form here

    Hints for Correctly Using NBK Products


    Material/Finish

    KSKA
    Knob Main Body Aluminum Alloy
    Anodized
    Hub SUS304

    Characteristics

    • Male screw knobs can be created through combination with commercial hex socket bolts. Screw length is freely selectable depending on the hex socket bolt used.

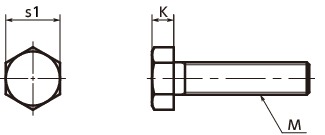

    • Use hex socket bolts with head dimensions as indicated below.

    Unit : mm

    M s1 K
    M6 10 4
    M8 13 5.5

    KSKAMetal Super Knobs

    • Knob bodies and hubs are metal. Suitable for applications in equipment and devices using metal detectors as foreign matter entry countermeasures. *1

    *1: Confirm that the metal detector reacts to aluminum alloys and stainless steel.

    • Use the dedicated jig KSKA-W for assembly. The jig is made of resin and will not damage the knob body.
    • We also manufacture male screw knob products assembled with hex socket bolts. Please contact our customer service.

    Precautions for Use

    • Do not use the knob as a way to pick up workpieces. The knob and hub may come apart.

    • After use, carefully wipe away any moisture or dirt. If moisture or dirt containing sodium remains on the knob, it may cause corrosion.

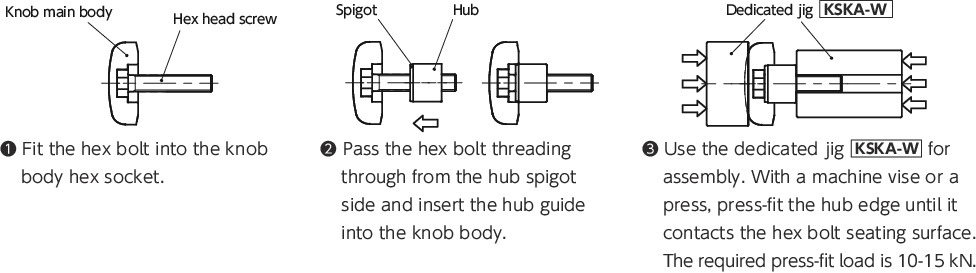

    Assembing method

    KSKAMetal Super Knobs
