Set Screws for Precision Instruments

Name: SNTS-FP
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

SNTS-FP

Safety Precautions

RoHS Compliant

Miniature

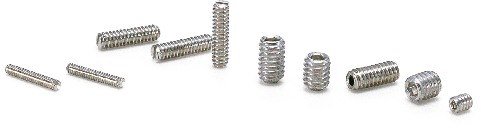

SNTS-FPSet Screws for Precision Instruments

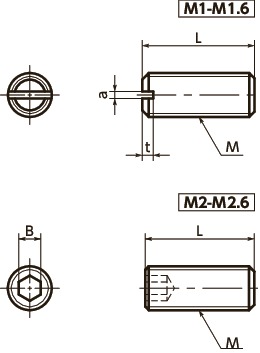

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1; M1.4; M1.6; M2; M2.5; M2.6

L: All; 3; 4; 5; 6

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	a	t	B	Max. Torque (N・m)	Qty per Pack	Mass (g)	CAD Download	RFQ
SNTS-M1-3-FP	M1	0.25	3	0.35	0.35	-	0.003	10	0.012	CAD	RFQ
SNTS-M1-4-FP	M1	0.25	4	0.35	0.35	-	0.003	10	0.016	CAD	RFQ
SNTS-M1-5-FP	M1	0.25	5	0.35	0.35	-	0.003	10	0.019	CAD	RFQ
SNTS-M1-6-FP	M1	0.25	6	0.35	0.35	-	0.003	10	0.023	CAD	RFQ
SNTS-M1.4-3-FP	M1.4	0.3	3	0.4	0.45	-	0.02	10	0.022	CAD	RFQ
SNTS-M1.4-4-FP	M1.4	0.3	4	0.4	0.45	-	0.02	10	0.031	CAD	RFQ
SNTS-M1.4-5-FP	M1.4	0.3	5	0.4	0.45	-	0.02	10	0.04	CAD	RFQ
SNTS-M1.4-6-FP	M1.4	0.3	6	0.4	0.45	-	0.02	10	0.049	CAD	RFQ
SNTS-M1.6-3-FP	M1.6	0.35	3	0.4	0.5	-	0.03	10	0.029	CAD	RFQ
SNTS-M1.6-4-FP	M1.6	0.35	4	0.4	0.5	-	0.03	10	0.04	CAD	RFQ
SNTS-M1.6-5-FP	M1.6	0.35	5	0.4	0.5	-	0.03	10	0.051	CAD	RFQ
SNTS-M1.6-6-FP	M1.6	0.35	6	0.4	0.5	-	0.03	10	0.062	CAD	RFQ
SNTS-M2-3-FP	M2	0.4	3	-	-	0.9	0.2	10	0.041	CAD	RFQ
SNTS-M2-4-FP	M2	0.4	4	-	-	0.9	0.2	10	0.058	CAD	RFQ
SNTS-M2-5-FP	M2	0.4	5	-	-	0.9	0.2	10	0.075	CAD	RFQ
SNTS-M2-6-FP	M2	0.4	6	-	-	0.9	0.2	10	0.092	CAD	RFQ
SNTS-M2.5-4-FP	M2.5	0.45	4	-	-	1.3	0.4	10	0.081	CAD	RFQ
SNTS-M2.5-5-FP	M2.5	0.45	5	-	-	1.3	0.4	10	0.055	CAD	RFQ
SNTS-M2.5-6-FP	M2.5	0.45	6	-	-	1.3	0.4	10	0.13	CAD	RFQ
SNTS-M2.6-4-FP	M2.6	0.45	4	-	-	1.3	0.4	10	0.094	CAD	RFQ
SNTS-M2.6-5-FP	M2.6	0.45	5	-	-	1.3	0.4	10	0.13	CAD	RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Service

Material/Finish

	M1-M1.6	M2-M2.6
Main Body	Stainless Steel	SUSXM7 (Equivalent to SUS304)

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

Miniature screws for precision instruments in sizes from M1 to M2.6.
Set screws with flat point.

Usage Example

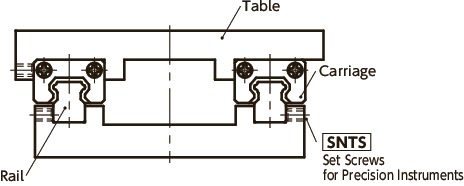

To locate and fix miniature linear guideway rails and tables.

SNTS-FPSet Screws for Precision Instruments

Product List

SNTS-M1.4-FP

SNTS-M1.6-FP

SNTS-M1-FP

SNTS-M2.5-FP

SNTS-M2.6-FP

SNTS-M2-FP

Click here to see Miniature Screws

Part Name

Plastic screw - Cross Recessed Pan Head Machine Screws for Precision Instruments - RENY
