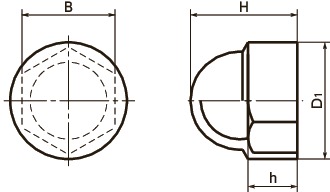

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | Nominal of Hex Head Screws and Hex Nuts＊1 |
B | H | h | D1 | Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|
| SCH-5 | 5 | 8 | 9.5 | 5 | 10.9 | 20 | 0.3 | CAD | RFQ |
| SCH-6 | 6 | 10 | 13 | 6 | 12.9 | 20 | 0.6 | CAD | RFQ |
| SCH-8 | 8 | 13 | 15 | 9 | 16.8 | 20 | 1 | CAD | RFQ |
| SCH-10 | 10 | 17 | 19.5 | 9 | 21.3 | 10 | 1.9 | CAD | RFQ |
| SCH-12 | 12 | 19 | 21.5 | 11 | 23.6 | 10 | 2.4 | CAD | RFQ |
| SCH-16 | 16 | 24 | 27 | 14 | 29.8 | 10 | 3.2 | CAD | RFQ |
＊1： Confirm the width across flat dimensions of the hex head screws and hex nuts. SCH-10 and SCH-12 use the old JIS dimensions.
●When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.
Related Service
Material/Finish
| SCH | |
|---|---|
| Main Body | Polyethylene（Black） |
Application
Protection of screw heads and dust countermeasureCharacteristics
- Cover caps cover heads of hex head screws and hex nuts to increase the safety of machines and instruments.
Usage Example
