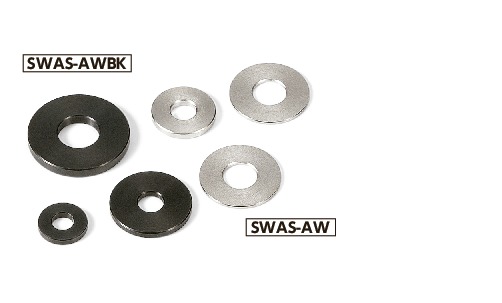

Adjust Metal Washer - Stainless Steel

SWAS-AW

Safety Precautions

RoHS Compliant

SWAS-AWAdjust Metal Washer - Stainless Steel

Dimension Drawing

SWAS-AWAdjust Metal Washer - Stainless Steel寸法図

Specs/CAD

Unit : mm

Part Number D d t Mass
(g)		 Qty per Pack CAD
Download		 RFQ
SWAS-2-8-1-AW 8 2 1 0.38 10 CAD RFQ
SWAS-2-8-2-AW 8 2 2 0.75 10 CAD RFQ
SWAS-3-8-1-AW 8 3 1 0.35 10 CAD RFQ
SWAS-3-8-2-AW 8 3 2 0.69 10 CAD RFQ
SWAS-4-8-1-AW 8 4 1 0.3 10 CAD RFQ
SWAS-4-8-1.5-AW 8 4 1.5 0.45 10 CAD RFQ
SWAS-4-8-2-AW 8 4 2 0.6 10 CAD RFQ
SWAS-4-10-1-AW 10 4 1 0.53 10 CAD RFQ
SWAS-4-10-2-AW 10 4 2 1.1 10 CAD RFQ
SWAS-4-10-3-AW 10 4 3 1.6 10 CAD RFQ
SWAS-4-12-1-AW 12 4 1 0.8 10 CAD RFQ
SWAS-4-12-2-AW 12 4 2 1.6 10 CAD RFQ
SWAS-4-12-3-AW 12 4 3 2.4 10 CAD RFQ
SWAS-4-15-2-AW 15 4 2 2.6 10 CAD RFQ
SWAS-4-15-3-AW 15 4 3 3.9 10 CAD RFQ
SWAS-5-8-1-AW 8 5 1 0.25 10 CAD RFQ
SWAS-5-8-1.5-AW 8 5 1.5 0.37 10 CAD RFQ
SWAS-5-8-2-AW 8 5 2 0.49 10 CAD RFQ
SWAS-5-10-1-AW 10 5 1 0.47 10 CAD RFQ
SWAS-5-10-2-AW 10 5 2 0.94 10 CAD RFQ
SWAS-5-10-3-AW 10 5 3 1.4 10 CAD RFQ
SWAS-5-12-1-AW 12 5 1 0.74 10 CAD RFQ
SWAS-5-12-2-AW 12 5 2 1.5 10 CAD RFQ
SWAS-5-12-3-AW 12 5 3 2.2 10 CAD RFQ
SWAS-5-15-2-AW 15 5 2 2.5 10 CAD RFQ
SWAS-5-15-3-AW 15 5 3 3.7 10 CAD RFQ
SWAS-5-16-2-AW 16 5 2 2.9 10 CAD RFQ
SWAS-5-16-3-AW 16 5 3 4.3 10 CAD RFQ
SWAS-5-20-1-AW 20 5 1 2.3 10 CAD RFQ
SWAS-5-20-2-AW 20 5 2 4.7 10 CAD RFQ
SWAS-6-10-1-AW 10 6 1 0.4 10 CAD RFQ
SWAS-6-10-2-AW 10 6 2 0.8 10 CAD RFQ
SWAS-6-10-3-AW 10 6 3 1.2 10 CAD RFQ
SWAS-6-12-1-AW 12 6 1 0.68 10 CAD RFQ
SWAS-6-12-2-AW 12 6 2 1.4 10 CAD RFQ
SWAS-6-12-3-AW 12 6 3 2 10 CAD RFQ
SWAS-6-15-2-AW 15 6 2 2.4 10 CAD RFQ
SWAS-6-15-3-AW 15 6 3 3.5 10 CAD RFQ
SWAS-6-16-2-AW 16 6 2 2.7 10 CAD RFQ
SWAS-6-16-3-AW 16 6 3 4.1 10 CAD RFQ
SWAS-6-16-5-AW 16 6 5 6.8 10 CAD RFQ
SWAS-6-20-1-AW 20 6 1 2.3 10 CAD RFQ
SWAS-6-20-2-AW 20 6 2 4.5 10 CAD RFQ
SWAS-6-20-3-AW 20 6 3 6.8 10 CAD RFQ
SWAS-6-20-5-AW 20 6 5 11 10 CAD RFQ
SWAS-6-25-2-AW 25 6 2 7.3 10 CAD RFQ
SWAS-6-25-3-AW 25 6 3 11 10 CAD RFQ
SWAS-6-25-5-AW 25 6 5 18 10 CAD RFQ
SWAS-8-12-2-AW 12 8 2 1 10 CAD RFQ
SWAS-8-12-3-AW 12 8 3 1.5 10 CAD RFQ
SWAS-8-12-5-AW 12 8 5 2.5 10 CAD RFQ
SWAS-8-16-2-AW 16 8 2 2.4 10 CAD RFQ
SWAS-8-16-3-AW 16 8 3 3.6 10 CAD RFQ
SWAS-8-16-5-AW 16 8 5 6 10 CAD RFQ
SWAS-8-20-2-AW 20 8 2 4.2 10 CAD RFQ
SWAS-8-20-3-AW 20 8 3 6.3 10 CAD RFQ
SWAS-8-20-5-AW 20 8 5 10 10 CAD RFQ
SWAS-8-25-2-AW 25 8 2 7 10 CAD RFQ
SWAS-8-25-3-AW 25 8 3 10 10 CAD RFQ
SWAS-8-25-5-AW 25 8 5 17 10 CAD RFQ
SWAS-8-30-2-AW 30 8 2 10 10 CAD RFQ
SWAS-8-30-3-AW 30 8 3 16 10 CAD RFQ
SWAS-8-30-5-AW 30 8 5 26 10 CAD RFQ
SWAS-10-12-2-AW 12 10 2 0.55 10 CAD RFQ
SWAS-10-12-3-AW 12 10 3 0.82 10 CAD RFQ
SWAS-10-12-5-AW 12 10 5 1.4 10 CAD RFQ
SWAS-10-16-3-AW 16 10 3 2.9 10 CAD RFQ
SWAS-10-16-5-AW 16 10 5 4.8 10 CAD RFQ
SWAS-10-20-2-AW 20 10 2 3.7 10 CAD RFQ
SWAS-10-20-3-AW 20 10 3 5.6 10 CAD RFQ
SWAS-10-20-5-AW 20 10 5 9.3 10 CAD RFQ
SWAS-10-25-3-AW 25 10 3 9.8 10 CAD RFQ
SWAS-10-25-5-AW 25 10 5 16 10 CAD RFQ
SWAS-10-30-3-AW 30 10 3 15 10 CAD RFQ
SWAS-10-30-5-AW 30 10 5 25 10 CAD RFQ
SWAS-12-16-3-AW 16 12 3 2.1 10 CAD RFQ
SWAS-12-16-5-AW 16 12 5 3.5 10 CAD RFQ
SWAS-12-20-2-AW 20 12 2 3.2 10 CAD RFQ
SWAS-12-20-3-AW 20 12 3 4.8 10 CAD RFQ
SWAS-12-20-5-AW 20 12 5 8 10 CAD RFQ
SWAS-12-25-3-AW 25 12 3 9 10 CAD RFQ
SWAS-12-25-5-AW 25 12 5 15 10 CAD RFQ
SWAS-12-30-3-AW 30 12 3 14 10 CAD RFQ
SWAS-12-30-5-AW 30 12 5 23 10 CAD RFQ
SWAS-16-20-2-AW 20 16 2 1.8 10 CAD RFQ
SWAS-16-20-3-AW 20 16 3 2.7 10 CAD RFQ
SWAS-16-20-5-AW 20 16 5 4.5 10 CAD RFQ
SWAS-16-25-3-AW 25 16 3 6.9 10 CAD RFQ
SWAS-16-25-5-AW 25 16 5 11 10 CAD RFQ
SWAS-16-30-3-AW 30 16 3 12 10 CAD RFQ
SWAS-16-30-5-AW 30 16 5 20 10 CAD RFQ

●When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Service

Material/Finish

SWAS-AW
Main body SUS304

Application

Height adjustment / Seating surface fall prevention

Characteristics

  • There is a variety of outside diameters and thickness relative to normal plain washers.
  • For securing seating surface on the long hole position and engagement of materials with low marginal seating surface pressure such as aluminum and resin.
  • ​As a collar and a spacer, it can adjust the cumulative error in assembly.

Product List

SWAS-10-12-AW

SWAS-10-16-AW

SWAS-10-20-AW

SWAS-10-25-AW

SWAS-10-30-AW

SWAS-12-16-AW

SWAS-12-20-AW

SWAS-12-25-AW

SWAS-12-30-AW

SWAS-16-20-AW

SWAS-16-25-AW

SWAS-16-30-AW

SWAS-2-8-AW

SWAS-3-8-AW

SWAS-4-10-AW

SWAS-4-12-AW

SWAS-4-15-AW

SWAS-4-8-AW

SWAS-5-10-AW

SWAS-5-12-AW

SWAS-5-15-AW

SWAS-5-16-AW

SWAS-5-20-AW

SWAS-5-8-AW

SWAS-6-10-AW

SWAS-6-12-AW

SWAS-6-15-AW

SWAS-6-16-AW

SWAS-6-20-AW

SWAS-6-25-AW

SWAS-8-12-AW

SWAS-8-16-AW

SWAS-8-20-AW

SWAS-8-25-AW

SWAS-8-30-AW

Click here to see Washers・Insert

SWA-AW

Part Name

Adjust Metal Washer - Steel - Ferrosoferric Oxide Film

Part Number

SWA-AW

Feature

Wide Variety

SWA-AWEL

Part Name

Adjust Metal Washer - Steel - Electroless Nickel Plating

Part Number

SWA-AWEL

Feature

Wide Variety

SWAS-AWBK

Part Name

Adjust Metal Washer - Stainless Steel Black

Part Number

SWAS-AWBK

Feature

Wide Variety
Reflection Resistance Corrosion Resistance

SWAS-PPK

Part Name

Flat Washer for Slotted Holes

Part Number

SWAS-PPK

Feature

Flat Washers for Slotted Holes
