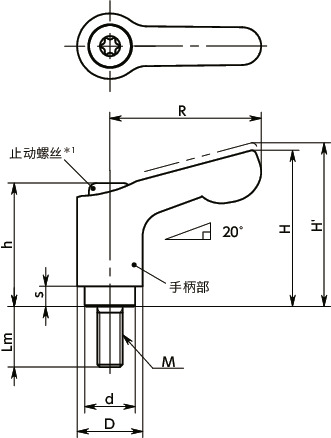

形状図
＊1： 将止动螺丝的头部形状从内六角圆柱头变更为梅花槽。
尺寸・CAD
单位 : mm
| 型号 | M（粗牙） 螺纹公称直径 |
螺距 | Lm | R | H | H' | h | s | D | d | 齿数 | 最大载荷 （N） |
最大紧固力 （kN） |
质量 （g） |
CAD下载 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LDCMS-3-6-NI-PE | M3 | 0.5 | 6 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 19 | 1.4 | 29 | - |
| LDCMS-3-8-NI-PE | M3 | 0.5 | 8 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 19 | 1.4 | 29 | - |
| LDCMS-3-10-NI-PE | M3 | 0.5 | 10 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 19 | 1.4 | 30 | - |
| LDCMS-3-12-NI-PE | M3 | 0.5 | 12 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 19 | 1.4 | 30 | - |
| LDCMS-3-16-NI-PE | M3 | 0.5 | 16 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 19 | 1.4 | 30 | - |
| LDCMS-4-10-NI-PE | M4 | 0.7 | 10 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 44 | 2.4 | 30 | - |
| LDCMS-4-12-NI-PE | M4 | 0.7 | 12 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 44 | 2.4 | 30 | - |
| LDCMS-4-16-NI-PE | M4 | 0.7 | 16 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 44 | 2.4 | 30 | - |
| LDCMS-4-20-NI-PE | M4 | 0.7 | 20 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 44 | 2.4 | 30 | - |
| LDCMS-4-25-NI-PE | M4 | 0.7 | 25 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 44 | 2.4 | 31 | - |
| LDCMS-4-32-NI-PE | M4 | 0.7 | 32 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 44 | 2.4 | 31 | - |
| LDCMS-5-12-NI-PE | M5 | 0.8 | 12 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 31 | - |
| LDCMS-5-16-NI-PE | M5 | 0.8 | 16 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 31 | - |
| LDCMS-5-20-NI-PE | M5 | 0.8 | 20 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 31 | - |
| LDCMS-5-25-NI-PE | M5 | 0.8 | 25 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 32 | - |
| LDCMS-5-32-NI-PE | M5 | 0.8 | 32 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 33 | - |
| LDCMS-5-40-NI-PE | M5 | 0.8 | 40 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 34 | - |
| LDCMS-5-50-NI-PE | M5 | 0.8 | 50 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 90 | 3.9 | 35 | - |
| LDCMS-6-12-NI-PE | M6 | 1 | 12 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 31 | - |
| LDCMS-6-16-NI-PE | M6 | 1 | 16 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 31 | - |
| LDCMS-6-20-NI-PE | M6 | 1 | 20 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 32 | - |
| LDCMS-6-25-NI-PE | M6 | 1 | 25 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 33 | - |
| LDCMS-6-32-NI-PE | M6 | 1 | 32 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 34 | - |
| LDCMS-6-40-NI-PE | M6 | 1 | 40 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 36 | - |
| LDCMS-6-50-NI-PE | M6 | 1 | 50 | 30 | 31 | 34.5 | 24.5 | 4 | 13 | 10 | 18 | 150 | 5.5 | 37 | - |
材质、表面处理
| LDCMS-NI-PE | |
|---|---|
| 手柄部 | SCS13（相当于SUS304） 电解研磨 |
| 螺纹部 | SUS303 |
| 止动螺丝 | SUS304 |
| 弹簧 | 不锈钢丝 |
特点

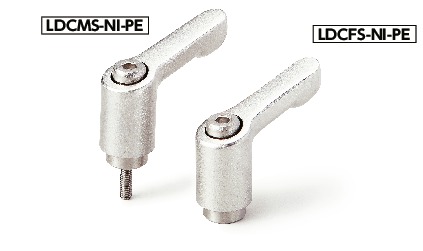

- 全不锈钢制的微型夹紧手柄。
- 经过电解研磨改善了手柄部表面品质。在赋予美丽光泽的同时，形成了致密的钝化膜，提高了耐腐蚀性。
