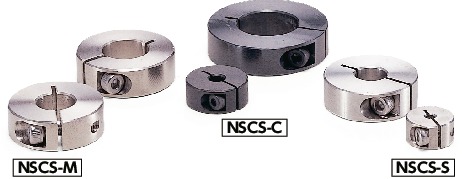

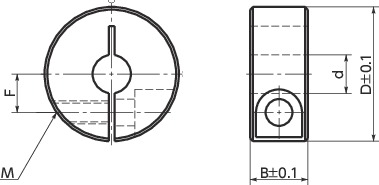

形状図
单位 : mm
| 型号 | d | B | D | F | M(粗牙)＊1 | 质量 （g） |
CAD下载 | 请求报价 |
|---|---|---|---|---|---|---|---|---|
| NSCS-20-10-S | 20 | 10 | 40 | 14 | M4 | 70 | CAD | 请求报价 |
＊1： 附带内六角圆柱头螺栓。
材质、表面处理
| NSCS-S | |
|---|---|
| 主体 | SUS304 |
| 内六角圆柱头螺栓 | SUSXM7 |
特点
- 夹紧型固定轴环。
- 便于安装、拆卸，不会损伤轴。
- 最适用于滑动轴等安装、拆卸频繁的机械和装置。
